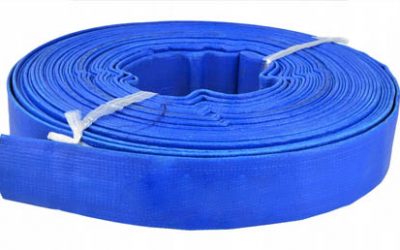

PU lined potable water hoses, double Jackets

Potaman is designed for potable water transfer application in compliance with American standards. This hose is recommended for American market, Asian market, South American market etc.
Potaman is a polyester double jacket style hose with a Polyurethane (PU/TPU) lining that can also handle some chemicals and petroleum based products. It can be coated with Asoe’s optional Polyurethane-based Durablux™ treatment for a higher level of heat and abrasion resistance.

Application: Suitable for potable water transfer, snow-making etc.
Inner tube: Polyurethane lining
Jacket: Double jackets, circular woven polyester jacket, plain weave or twill weave, warp yarn is made of spun polyester yarn, strips available per request
Operating Temperature Range: -60° to 176°F (-50° to 80°C) based on water
Standard Color: Blue (other colors (coated with Durablux™) available per request.
Standard Length: 50ft, 100ft; other lengths available per request;
Couplings: Stainless steel camlock couplings
Standards: Meets and exceeds NSF61, UL19, FM2111, etc.



Hose ID Working Pressure Bursting Pressure
Inch mm PSI/bar PSI/bar
1 1/2″ 39 400/28, 600/42 1200/84, 1800/126
1 3/4″ 45 400/28, 600/42 1200/84, 1800/126
2″ 51 400/28, 600/42 1200/84, 1800/126
2 1/2″ 65 400/28, 600/42 1200/84, 1800/126
3″ 79 400/28 1200/84
