Single Jacket Fire Hoses lined with EPDM Rubber lining, American standards

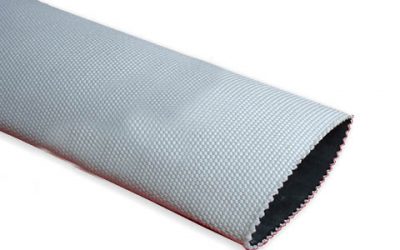

Ironman AES is designed for fire-fighting application in compliance with American standards. Ironman AES is a polyester single jacket style hose with an EPDM rubber liner that can also handle some chemicals and petroleum based products. It can be coated with Asoe’s optional Polyurethane-based Durablux™ treatment for a higher level of heat and abrasion resistance.

Application:Suitable for military, industiral and municipal fire brigades, marine fire fighting, etc.
Inner tube: EPDM rubber lining
Jacket: Single jacket, circular woven polyester jacket, plain weave, warp yarn is made of spun polyester yarn, strips available per request
Operating Temperature Range: -40° to 150°F (-40° to 65°C) based on water
Standard Color: White (no coating), yellow and Red (coated with Durablux™), Other color options are available per request.
Standard Length: 50ft, 100ft; other lengths available per request;
Couplings: Aluminum or Brass NH/NST couplings, Camlock, and pinlug couplings etc.
Standards: UL19, FM2111, andNFPA1961 etc.



Hose ID Working Pressure Bursting Pressure
Inch mm PSI/bar PSI/bar
1″ 26 250/17, 300/21 750/51, 900/63
1 1/2″ 39 250/17, 300/21 750/51, 900/63
1 3/4″” 45 250/17, 300/21 750/51, 900/63
2″ 52 250/17, 300/21 750/51, 900/63
2 1/2″ 65 250/17, 300/21 750/51, 900/63
3″ 78 250/17, 300/21 750/51, 900/63
