Description

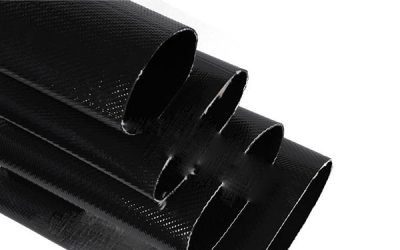

Manureflow PU supply hoses are defferent in structure and PU formula although Manureflow looks similar to ordinary PU covered layflat hoses. Mileflex PU hoses are not supposed to be used for manure supply. Manureflow Pu supply hoses are through-the-weave PU covered layflat hoses. Hundreds of miles (kilometers) of Manureflow PU supply hoses are approved by American farmers because of its low elongation rate, high adhesion, and high operating pressure etc.
Applications
Agriculture manure supply
Supply hose for liquid manure and sludge injection systems
For heavy duty service under toughest conditions
Recommended for Manure Transfer Solutions.
Features
Superior abrasion resistance
Superior performance in adhesion between jackets and tubes or covers
Ultra-high tensile strength
Resistance to oil, fuel and a wide range of chemicals (see resistance table in technical appendix)
Resistance to weathering, UV and ozone
Lightweight and easy to handle compared to material handling hose in rubber
Super low elongation rate
Color
Black (Other color available of request)
| Size | Wall Thickness | Proof Test | Burst Pressure | Weight | |||
| Inch | mm | Inch | mm | PSI | PSI | LBS/ft | kg/m |
| 6″ | 154+2.5 | 0.17″ | 4.2 | 200 | 600 | 1.56 | 2.33 |
| 7″ | 178+3.0 | 0.17″ | 4.2 | 215 | 645 | 1.87 | 2.79 |
| 8″ | 204+3.0 | 0.175″ | 4.5 | 215 | 645 | 2.30 | 3.43 |
| 10″ | 254+3.0 | 0.18 | 4.6 | 200 | 600 | 3.08 | 4.59 |
