Single Jacket Mill Discharge Hoses lined with Natural Rubber (NR)

Manufactured in accordance with our ISO-9001 certified quality assurance system.

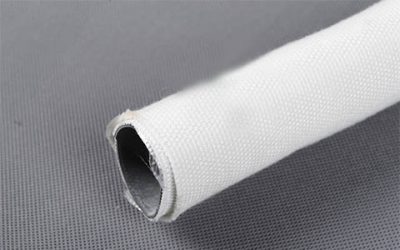

Millflo ANS is also called mill discharge hose or fire hose. It is designed for water discharge, washdown etc. Millflo ANS is a polyester single-jacket hose with a Natural rubber (NR) and SBR compound lining. Polyester jacket is 100% mildew resistant.
Millflo ANS hoses are economic hose solutions for water transfer.

Application: Suitable for contruction, water discharge, washdown etc.
Inner tube: NR/SBR rubber compound lining
Jacket: Single jacket, circular woven polyester jacket, plain weave, warp yarn is made of spun polyester yarn, strips available per request
Operating Temperature Range: -22° to 158°F (-30° to 70°C) based on water
Standard Color: White (no coating), other colors (coated with Durablux™) available per request.
Standard Length: 50ft, 100ft; other lengths available per request;
Couplings: Aluminum or Brass NH/NST couplings, Camlock, and pinlug couplings etc.
Standards: Asoe corporate standard

Note: Thin wall rubber or thin jackets available upon request for additional savings.



Hose ID Working Pressure Bursting Pressure
Inch mm PSI/bar PSI/bar
1″ 26 150/10 450/30
1 1/2″ 39 150/10 450/30
2″ 52 150/10 450/30
2 1/2″ 65 150/10 450/30
3″ 78 150/10 450/30
4″ 104 150/10 450/30

Millflo AND

Double Jacket Mill Discharge Hoses lined with Natural Rubber (NR)

Manufactured in accordance with our ISO-9001 certified quality assurance system.
Millflo AND is also called mill discharge hose, contract hose or double jacket fire hose. It is designed for water discharge, washdown etc. Millflo AND is a polyester double-jacket hose with a Natural rubber (NR) and SBR compound lining. Polyester jacket is 100% mildew resistant.
Millflo AND hoses are economic hose solutions for water transfer.

Application: Suitable for contruction, water discharge, washdown etc.
Inner tube: NR/SBR rubber compound lining
Jacket: Double jacket, circular woven polyester jacket, plain weave, warp yarn is made of spun polyester yarn, strips available per request
Operating Temperature Range: -22° to 158°F (-30° to 70°C) based on water
Standard Color: White (no coating), other colors (coated with Durablux™) available per request.
Standard Length: 50ft, 100ft; other lengths available per request;
Couplings: Aluminum or Brass NH/NST couplings, Camlock, and pinlug couplings etc.
Standards: Asoe corporate standard

Note: Thin wall rubber or thin jackets available upon request for additional savings.



Hose ID Working Pressure Bursting Pressure
Inch mm PSI/bar PSI/bar
1″ 26 250/17 750/51
1 1/2″ 39 250/17 750/51
2″ 52 250/17 750/51
2 1/2″ 65 250/17 750/51
3″ 78 250/17 750/51
4″ 104 250/17 750/51



Millflo APS

Asoe also developed brandly new mill discharge hoses to replace Millflo ANS in some condition. If the customers prefer more light-weighted single mill discharge hoses. Customers are recommended to purchase Millflo APS.

Millflo APS is single jacket mill discharge hoses lined with PVC/NBR. The PVC/NBR lining has better performance in age-ristance. The jacket of Millflo APS is similar to the one of Millflo ANS.



Millflo APD

Asoe also developed brandly new mill discharge hoses to replace Millflo AND in some condition. If the customers prefer more light-weighted double mill discharge hoses. Customers are recommended to purchase Millflo APD.

Millflo APD is double jacket mill discharge hoses lined with PVC/NBR. The PVC/NBR lining has better performance in age-ristance. The jacket of Millflo APD is similar to the one of Millflo AND.
