This hose is made from extruded thermoplastic polyether based polyurethane (TPU) with excellent wear & tear properties. The reinforcement is made from circular woven filament polyester yarn. The “extrusion through-the-weave” production method gives a very strong bonding between cover and lining as well as firmly encapsulating the woven polyester.
Incorporated copper wire is used to transfer static electricity.
Features & Benefits
- Lightweight and easy to handle
- High Pressure rating
- Good resistance to fuel and chemicals
- Easy to repair and patch
- Compact storage
- UV Stabilised hardwearing
- Supplied with copper anti-static wire for electrical continuity
- Available in different colours
Applications & Uses
- Refuelling truck, rail & ship
- Fuel Terminals & Depots
- Bulk Fuel Distribution
- Ship to Shore transfer
Recommended for Temporarily Oil Transfer Solutions.
Specifications
| Colour | Green, Blue, Black |
| Working Temperature | -50C deg to 65C deg |
| Static Protection | Incorporates anti-static wire |
| Chemical Resistance | Resistant to hydrocarbons and most chemicals |
| Impact Damage | High abrasion resistance |
| Ozone Properties | UV stabilised |
| Handling | Easy to handle & roll |
| Properties | Lightweight, durable & maintenance free |
| Hose Sizes diameter mm (inch) | Internal diameter (mm) | External diameter (mm) | Service Test Pressure, PSI | Burst Pressure. PSI | Weight (ib/m) |
| 40mm (1 1/2″) | 40.0 | 42.0 | 750 | 2250 | 0.88 |
| 50mm (2”) | 50.0 | 54.0 | 750 | 2250 | 1.21 |
| 64mm (2 1/2″) | 64.0 | 68.0 | 750 | 2250 | 1.65 |
| 75mm (3”) | 76.0 | 80.0 | 750 | 2250 | 2.10 |
| 100mm (4”) | 102.0 | 106.0 | 675 | 2025 | 3.09 |
| 150mm (6”) | 152.0 | 156.5 | 675 | 2025 | 5.51 |

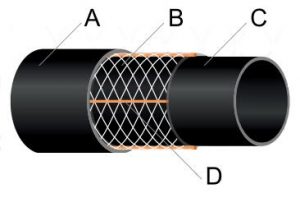

A Outside Polyurethane Cover
B Reinforcement Jacket
C Inside Polyurethane Tube
D Copper Wire
